Connect Claroty

Elisity supports simple API connectivity to Claroty as a method to enrich Operational Technology (OT) device discovery and identity.

Prerequisites

  • Claroty CTD is already installed and SPAN traffic is being sent to CTD
  • There is an admin role / credential access to the CTD or EMC server

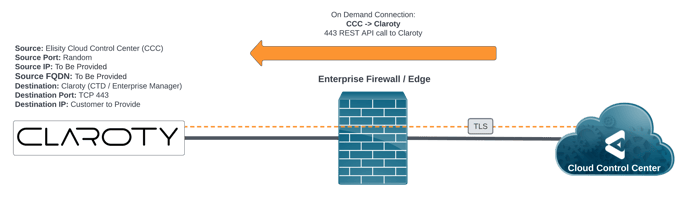

  • Elisity Cloud Control Center has IP connectivity to CTD or EMC through the enterprise firewall

Firewall Ports_IPs (1)                                                                      (Click to enlarge)

Connector Instructions

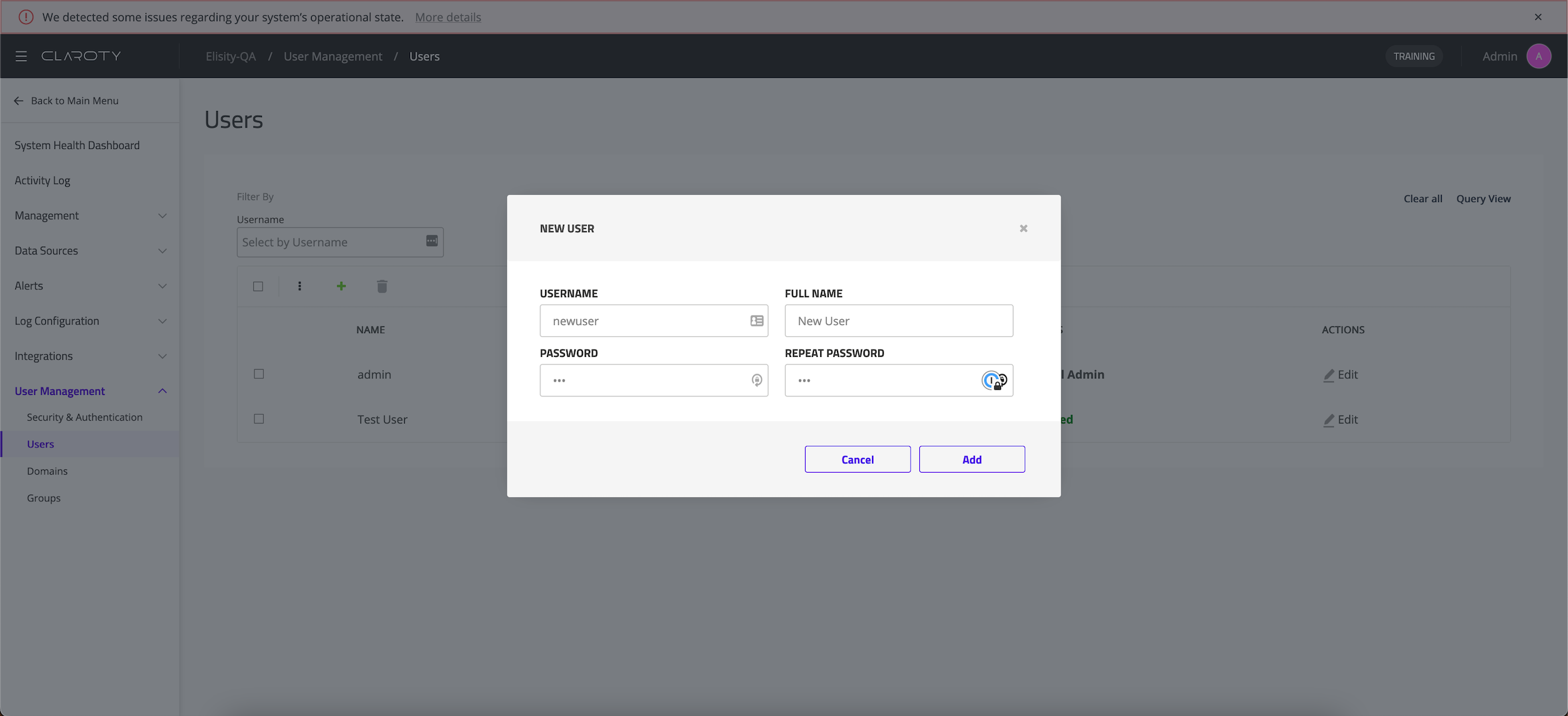

1. Create the connector User on the Claroty CTD or EMC portal by logging in and navigating to User Management > Users. Select New User. Create a new user for Elisity Cloud Control Center to login to Claroty with.

                                                                      (Click to enlarge)

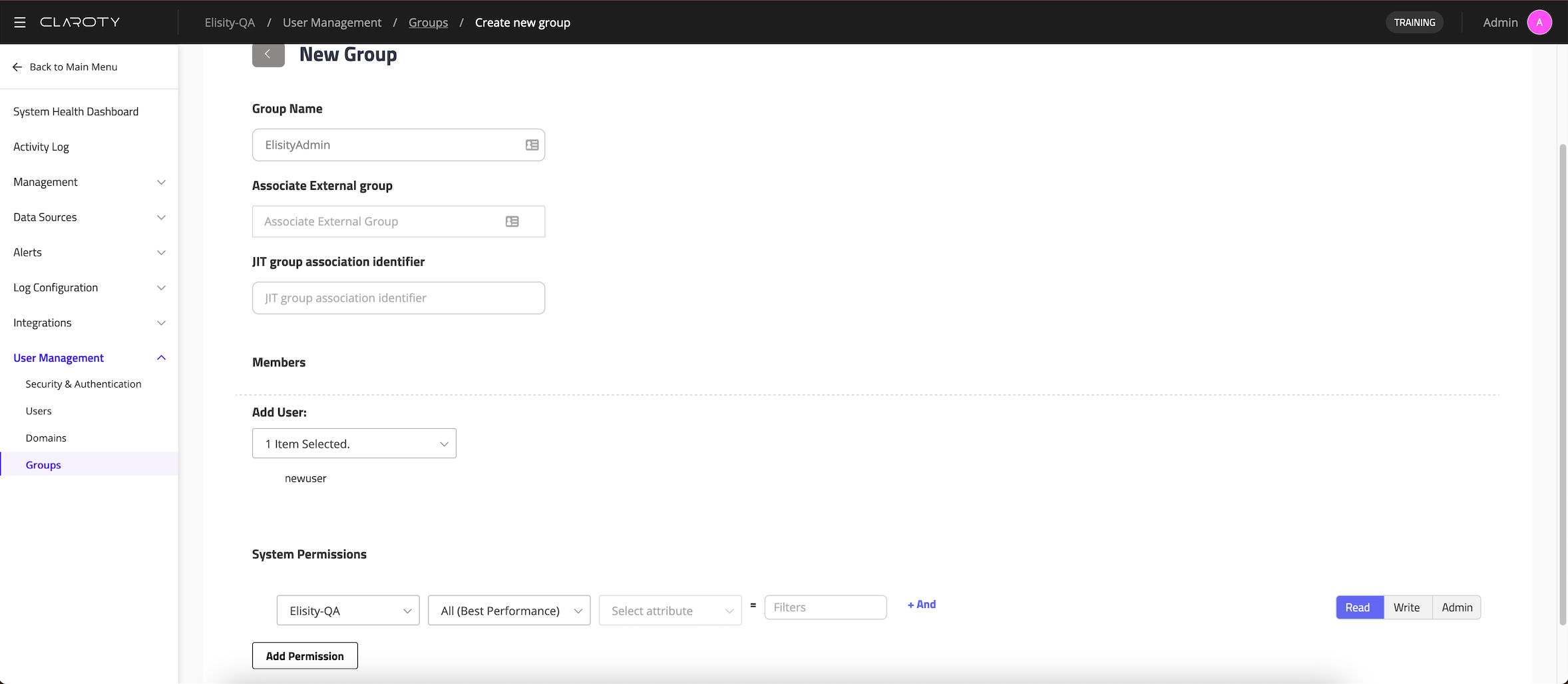

2. Add this user to the Permissions group for All Asset access


                                                                    (Click to enlarge)

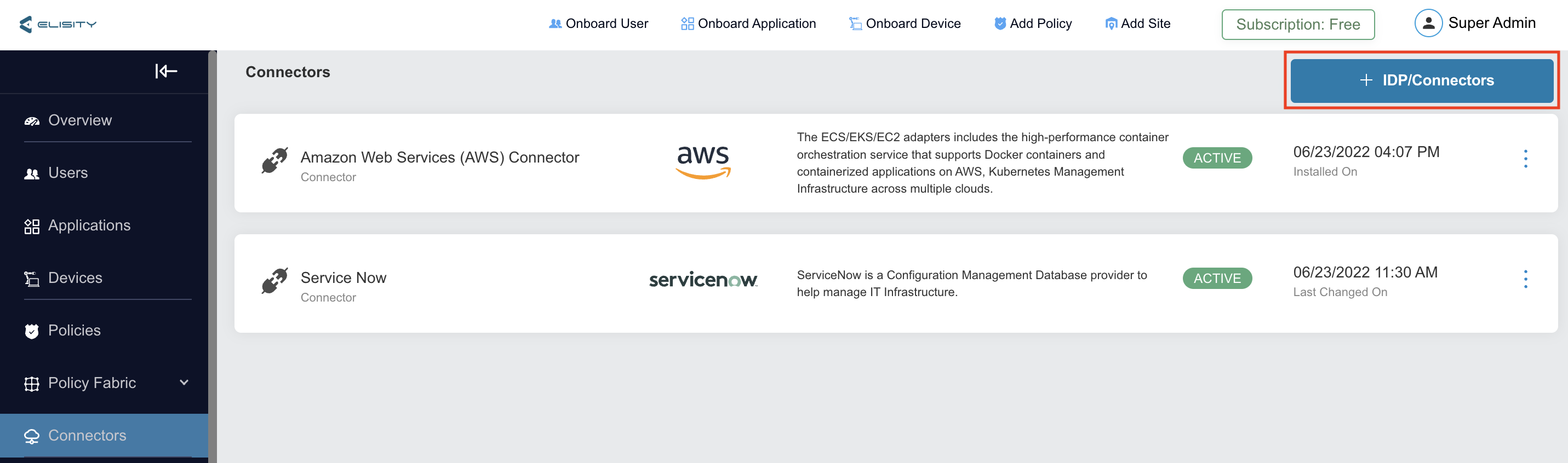

3. Log into Elisity Cloud Control Center and enable the Claroty Connector by navigating to Connectors on the left menu bar. Select + IDP\Connectors

Screen Shot 2022-06-23 at 4.07.38 PM

                                                                    (Click to enlarge)

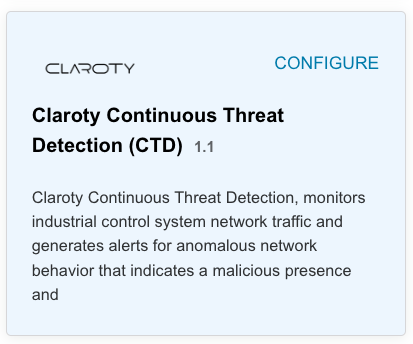

4. Select Configure on the Claroty connector tile in the list that pops up on the right side of the screen.

Screen Shot 2022-06-23 at 2.59.24 PM                                                                (Click to enlarge)

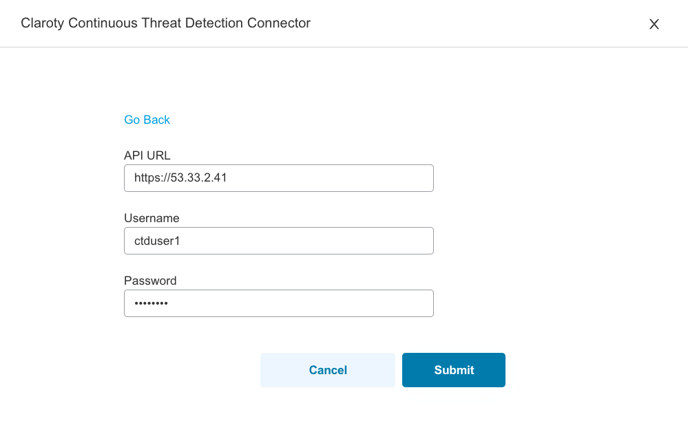

5. Enter the API URL (IP of the CTD/EMC instance), the Username and Password previously configured in the Claroty portal and select Submit.

Screen Shot 2022-06-23 at 2.58.57 PM

                                                                (Click to enlarge)

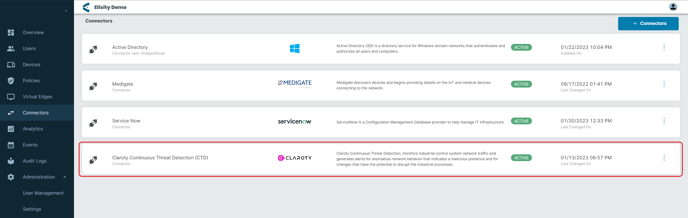

6. After the connector has been configured it should show Active on the main connector page in Cloud Control Center.

Screen Shot 2022-06-23 at 4.17.01 PM                                                                (Click to enlarge)

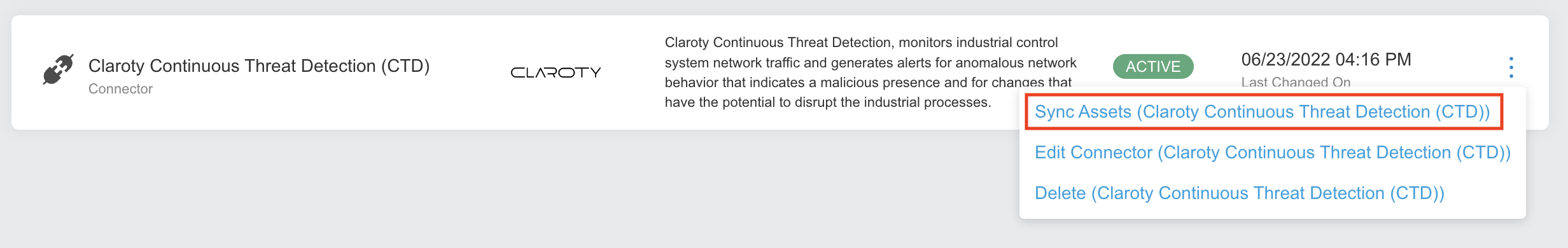

7. Select the three dots next to the connector and then select Sync Assets to bulk import all of the Claroty learned assets into the Elisity device asset database.

                                                                (Click to enlarge)
