Microsegmentation vs Network Segmentation: What Actually Separates Them

The Segmentation Gap

Organizations struggle to understand the difference between network segmentation and microsegmentation, often treating them as interchangeable. This confusion leads to security gaps where east-west traffic flows unchecked between workloads on the same VLAN or subnet. Traditional network segmentation creates broad zones but cannot enforce granular policies at the workload level, and attackers know it. The lateral movement attack chain, in which an intruder lands on one device and pivots quietly toward higher-value systems, runs almost entirely inside those trusted zones. Our guide to understanding and preventing lateral movement covers that attack chain step by step.

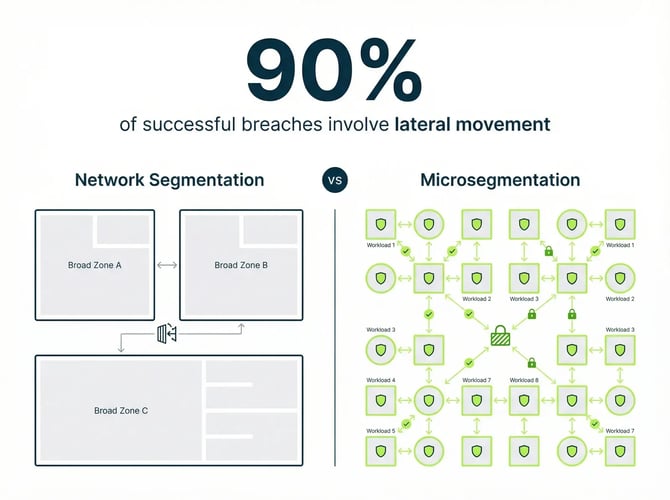

The Numbers Behind the Segmentation Gap

Network segmentation alone cannot stop lateral movement. Microsegmentation enforces granular, identity-based policies at the workload level to close the gaps traditional approaches leave open. The data behind that statement:

Network Segmentation: The Foundation That Is Showing Its Age

Definition: network segmentation is the practice of dividing a network into smaller zones, typically with VLANs, subnets, firewall zones, and access control lists (ACLs), so that traffic between zones must cross an enforcement point where policy can be applied.

Network segmentation has been a core security practice for decades. The concept is straightforward: divide a flat network into smaller zones so that a compromise in one zone does not automatically grant access to everything else. It is the digital equivalent of putting walls and doors in an open-floor building.

The model works at the perimeter of each zone. A firewall or routed boundary inspects north-south traffic as it crosses from one zone to another, and frameworks from PCI DSS to NERC CIP to IEC 62443 (with its zones-and-conduits model for industrial networks) have institutionalized the approach. Done well, it limits broad exposure and satisfies network segmentation compliance requirements across regulated industries.

Its weakness is what happens inside each zone. Every device in a segment shares the same trust level, so a single compromised workstation, server, or IoT sensor can reach everything else in its zone without ever touching an enforcement point. Re-segmenting to shrink those zones means re-addressing, re-cabling, firewall rule sprawl, and maintenance windows, which is why most segmentation projects stop at a handful of coarse zones. Our analysis of network segmentation and east-west attacks looks at this gap in detail.

Microsegmentation: Granular Control at the Workload Level

Definition: microsegmentation is the practice of enforcing least-privilege security policy at the level of the individual workload, device, or user, creating a micro-perimeter around each asset rather than around groups of assets.

Microsegmentation extends the concept of segmentation down to the individual workload, device, or user. Instead of creating broad zones and trusting everything within them, microsegmentation creates a security perimeter around each asset and enforces policies based on identity, context, and behavior. For the full definition, architecture, and benefits, see our guide to what microsegmentation is and how it works.

NIST Special Publication 800-207, the federal Zero Trust Architecture standard, names microsegmentation as one of its three core deployment approaches, alongside enhanced identity governance and software-defined perimeters. The CISA Zero Trust Maturity Model takes the same position: its network pillar progresses from macro-segmentation at the traditional stage to micro-perimeters at the optimal stage. In other words, the standards bodies treat microsegmentation as the destination that zone-based segmentation matures toward, not as a rival technology.

How a platform reaches that destination varies widely. Some approaches install host agents, some embed in hypervisors or service meshes, and some enforce identity-based policy through the network access layer you already operate, agentless and with no new hardware. Our comparison of the five types of microsegmentation breaks down each approach.

Key Differences Between Microsegmentation and Network Segmentation

These are the dimensions that matter most when you are evaluating the two approaches for your own environment.

Master comparison: 7 key differences

Dimension	Network segmentation	Microsegmentation
1. Granularity	Coarse: zones and subnets containing hundreds to thousands of devices	Fine: each workload, device, or user carries its own security context
2. Enforcement point	Zone boundaries: firewalls, routed VLAN borders, ACLs	As close to the asset as possible: access layer, host, hypervisor, or service mesh
3. Identity-awareness	None: policy keys on IP address, port, and subnet	Core attribute: policy keys on user, device, and workload identity plus context
4. East-west coverage	Partial: stops zone crossing, blind to traffic inside a zone	Full: governs every workload-to-workload connection, including within a zone
5. Hardware dependency	High: firewall appliances and VLAN re-architecture are usually required	Low to none: identity-based approaches run on the infrastructure you already operate, no new hardware
6. Deployment time	Weeks to months per zone change, with maintenance windows	Weeks for identity-based, agentless approaches; months to years for agent-based
7. Trust model	Implicit trust inside each zone	Least privilege per asset, aligned with NIST SP 800-207 Zero Trust principles

Network segmentation operates at the zone or subnet level. You create segments that contain dozens, hundreds, or thousands of devices, and everything within a segment shares the same trust level. Microsegmentation operates at the individual asset level. Each device, workload, or user has its own security context and policy set, so two devices on the same access-layer port can have completely different permissions based on their identity.

Why Network Segmentation Alone Is No Longer Sufficient

I have talked to CISOs at healthcare systems, manufacturing companies, and financial institutions who all describe the same pattern: they invested heavily in network segmentation years ago, and it served them well as a compliance checkbox. But when they look at their actual exposure to lateral movement, they realize that segmentation alone is not containing the threats they care about.

The numbers explain why. The IBM Cost of a Data Breach Report 2024 measured an average of 194 days to identify a breach and another 64 days to contain it, a 258-day lifecycle that gives intruders months to move east to west inside trusted zones. The Verizon 2025 Data Breach Investigations Report found that stolen credentials were involved in 32 percent of breaches, exactly the access that zone-level controls implicitly trust, and that ransomware was present in 44 percent of breaches. A ransomware operator who lands inside a flat zone inherits the blast radius of that entire zone, which is why blocking lateral movement with microsegmentation has become the control boards ask about by name.

The device population makes the gap wider every year. Unmanaged IoT devices, OT assets on industrial networks organized around the Purdue Model, and connected medical devices (IoMT) cannot take an endpoint agent and rarely fit cleanly into a VLAN plan. IoT segmentation at zone granularity leaves every one of those devices trusted by its neighbors.

There is an upside hiding in the same research: IBM’s Cost of a Data Breach Report 2024 found that organizations with mature Zero Trust deployments saved an average of $1.76 million per breach. Gartner, in its Market Guide for Microsegmentation, projects that by 2026, 60 percent of enterprises working toward a Zero Trust architecture will use more than one form of microsegmentation, up from less than 5 percent in 2023. The economics now favor finishing the job that segmentation started.

When to Use Network Segmentation vs Microsegmentation

This is not an either-or decision. In my experience, the most effective security architectures layer both approaches for defense in depth: network segmentation provides the macro boundaries and microsegmentation enforces granular policies within those boundaries. Network segmentation is your walls and doors. Microsegmentation is the access badge system that determines who can open which door and when.

When to use each approach

Scenario	Network segmentation	Microsegmentation	Layer both?
Compliance-driven isolation (PCI DSS cardholder data environment)	Primary	Supplementary	Recommended
Flat or lightly zoned network with a heavy IoT and OT device mix	Limited	Primary	Ideal
Ransomware blast-radius reduction	Limited	Primary	Ideal
Legacy on-premises data center with stable workloads	Primary	Add as risk requires	Best practice
Cloud-native and containerized workloads	Insufficient	Primary	Required
Healthcare environments with IoMT devices and HIPAA obligations	Partial	Primary	Required
Zero Trust program aligned to NIST SP 800-207	Starting point	Primary	Required

If you need a decision rule, use these five criteria in order:

1. Regulatory floor: if a framework explicitly requires zone isolation (PCI DSS, NERC CIP), keep network segmentation as the documented boundary control.
2. East-west exposure: if a single compromised asset could reach systems it never needs to talk to, you need microsegmentation; zone controls will not see that traffic.
3. Device agent feasibility: if a meaningful share of your assets (IoT, OT, IoMT, legacy servers) cannot run an agent, choose an agentless, identity-based approach.
4. Rate of change: if devices and workloads appear, move, and change addresses constantly, IP-based and VLAN-based policy will decay; identity-based policy will not.
5. Time to value: if the goal is measurable lateral movement reduction this quarter, favor an approach that deploys in weeks on the infrastructure you already run, with no new hardware.

Migration Path: From Network Segmentation to Microsegmentation

You do not rip out network segmentation to adopt microsegmentation. You keep the macro zones you have, then add identity-based enforcement inside them in phases. A proven sequence, drawn from our step-by-step microsegmentation implementation guide:

1. Discover and classify. Build a live inventory of every user, workload, and device, including unmanaged IoT, OT, and IoMT assets, and enrich it with identity attributes.
2. Map flows and dependencies. Observe east-west traffic to learn what each asset actually needs to talk to before any policy is written.
3. Simulate policy. Author least-privilege, identity-based policies and run them in monitor-only mode to verify nothing breaks.
4. Enforce in waves. Activate enforcement for the highest-risk asset classes first (crown-jewel applications, IoMT, OT), then expand site by site.
5. Operationalize. Feed policy decisions from your identity providers and CMDB so segmentation keeps pace as the environment changes.

Migration at a glance

Phase	What happens	Typical duration (identity-based, agentless)	Success measure
1. Discovery	Asset inventory and identity enrichment across every data plane	Days	Percentage of assets identified and classified
2. Flow mapping	East-west traffic baselining and dependency mapping	1 to 2 weeks	Dependency map coverage of critical applications
3. Policy simulation	Least-privilege policies tested in monitor-only mode	1 to 2 weeks	Zero would-be-blocked legitimate flows
4. Enforcement waves	Enforcement activated for priority asset classes, then expanded	Weeks	Reduction in reachable attack surface per wave
5. Operations	Policy automation tied to identity providers and CMDB	Ongoing	Policy drift and exception count over time

Implementation Approaches Compared

Deployment model is where segmentation projects succeed or stall. Three architectures dominate, and they behave very differently in production:

Implementation comparison

Criterion	Traditional network segmentation	Agent-based microsegmentation	Identity-based, agentless microsegmentation
Deployment time	Weeks to months	Months to years	Weeks
Agent required	No	Yes, on every covered workload	No
New hardware required	Often (firewall appliances, re-cabling)	No	No
Policy basis	IP address, port, subnet, VLAN	Per-workload flow rules	User, device, and workload identity, auto-discovered
Unmanaged IoT, OT, and IoMT coverage	Coarse zones only	Poor: agents cannot be installed	Strong: enforcement does not depend on the endpoint
Dynamic environment support	Poor: policy decays as addresses change	Moderate	Strong: identity follows the asset across any data plane

The categories run broader than these three, and the labels matter when you read analyst coverage. The vendor-neutral way to slice it:

Segmentation approaches by category (vendor-neutral)

Approach	How it enforces	Agentless	Identity-driven	Typical fit
VLAN and firewall segmentation	Zone boundaries on managed network hardware	Not applicable	No	Compliance boundaries, macro zones
Host-based microsegmentation	Endpoint agents controlling the host firewall or eBPF layer	No	Partial	Server estates and cloud workloads that can run agents
Hypervisor and SDN segmentation	Virtual networking layer (SDN overlays, VXLAN)	Partial	Partial	Virtualized data centers
Service mesh and cloud-native controls	Sidecars, security groups, CWPP integrations	Partial	Partial	Kubernetes and cloud-native applications
Identity-based, agentless microsegmentation	Policy enforced through the access infrastructure you already run, across any data plane	Yes	Yes	Campus, healthcare, and industrial environments with mixed managed and unmanaged devices

What Compliance Frameworks Expect from Segmentation

Auditors increasingly distinguish between having segments and being able to prove least-privilege control. The major frameworks map cleanly onto the two approaches, which is why microsegmentation for compliance has become a primary adoption driver. The PCI Security Standards Council made PCI DSS v4.0 requirements mandatory on March 31, 2025, and healthcare teams tracking the proposed HIPAA Security Rule update face a 240-day implementation window for controls that include network segmentation once the rule is finalized.

Compliance framework applicability

Framework	What network segmentation satisfies	What microsegmentation adds
PCI DSS v4.0 (Requirement 1.3)	Cardholder data environment perimeter isolation; traffic restricted to that which is necessary	Workload-level isolation inside the CDE and evidence of least-privilege flows
HIPAA Security Rule (45 CFR §164.312)	Network-level technical access controls	Device-level governance of ePHI access, including IoMT
NIST SP 800-207 (Zero Trust Architecture)	Network boundary controls as a starting posture	Named deployment approach: identity-based, per-asset access policy
CMMC Level 2 (NIST SP 800-171, 110 requirements)	CUI network isolation	Asset-level least-privilege enforcement and auditable policy
NERC CIP (electric sector OT)	IT and OT zone separation, electronic security perimeters	Per-device control inside OT zones
IEC 62443 (industrial automation)	Zones-and-conduits architecture	Granular conduit policy keyed to asset identity rather than address

The Role of Identity in Modern Microsegmentation

Identity is what I have found separates effective microsegmentation deployments from ones that stall out.

First-generation microsegmentation required you to understand every network flow, manually map application dependencies, and write rules based on IP addresses and port numbers. That approach worked in small, static environments. It collapsed under the weight of real enterprise networks where devices change IP addresses, applications get containerized, and new IoT devices show up daily.

Identity-based microsegmentation inverts the model. Policy attaches to who and what an asset is (its verified user, device, and workload identity) rather than where it happens to sit, so the policy survives address changes, moves between sites, and works across any data plane. It is the same shift that Zero Trust Network Access (ZTNA) brought to remote access and that SASE brought to the network edge, now applied to east-west traffic inside the campus, the data center, and the industrial floor. That is why Zero Trust microsegmentation programs treat identity as the control plane, not an attribute bolted on afterward.

Identity also changes the operational math. When policies are generated from observed behavior and identity context instead of hand-written per-address rules, the rule base stops growing with every DHCP lease, and security teams spend their time approving policy rather than reverse-engineering traffic captures.

Elisity Microsegmentation: Accelerate Zero Trust Security in Weeks, Not Years

Everything above is architecture, and it holds true regardless of vendor. Where Elisity enters the picture is the last column of the implementation table: identity-based, agentless microsegmentation that enforces least-privilege policy through the access infrastructure you already run, across any data plane, with no new hardware and no endpoint agents. That architecture is what makes the weeks-not-years deployment timeline real for environments full of unmanaged IoT, OT, and IoMT devices.

That execution gap is what an identity-based, agentless model is built to remove: enforcement runs through the access infrastructure already in place, so initial policy can reach production in weeks rather than the months or years agent rollouts typically demand. Elisity was named a Strong Performer in The Forrester Wave: Microsegmentation Solutions, Q3 2024 and a Cool Vendor in Gartner Cool Vendors in Cyber-Physical Systems Security 2025, and the same architecture is at work in leading healthcare security programs and emerging use cases such as microsegmentation for agentic AI threats.

For the full architecture, download the Elisity identity-based microsegmentation solution brief.
