PCI DSS Network Segmentation: The Bank Branch Blind Spot

Every financial services CISO I talk to has the same blind spot. They've invested millions in fraud detection, application security, endpoint protection, and perimeter defenses. But when I ask about PCI DSS network segmentation across their branch locations, the conversation gets quiet. The reality is that most bank branch networks look exactly like the hospital satellite clinics and manufacturing plant floors I've been working with for years: flat Layer 2 networks where a compromised device can reach everything.

According to the CrowdStrike 2025 Global Threat Report, the average lateral movement time in financial services is just 31 minutes. That means once an attacker gains initial access to a branch network (through a compromised teller workstation, an unpatched digital signage display, or a rogue device plugged into an open port) they can reach cardholder data environments, core banking connections, and SWIFT terminals in under half an hour. And with most branches running flat or minimally segmented networks, there's nothing standing in the way.

This post breaks down why bank branches represent the most underprotected attack surface in financial services, why traditional VLAN-based segmentation is failing at branch scale, and what a practical path forward looks like for security teams facing PCI DSS 4.0 and FFIEC compliance deadlines.

The Branch Network Blind Spot in Financial Services

Bank branches are the soft underbelly of financial services cybersecurity. While headquarters and data centers receive heavy security investment, branch offices typically operate with flat or loosely segmented networks connecting a mix of managed and unmanaged devices.

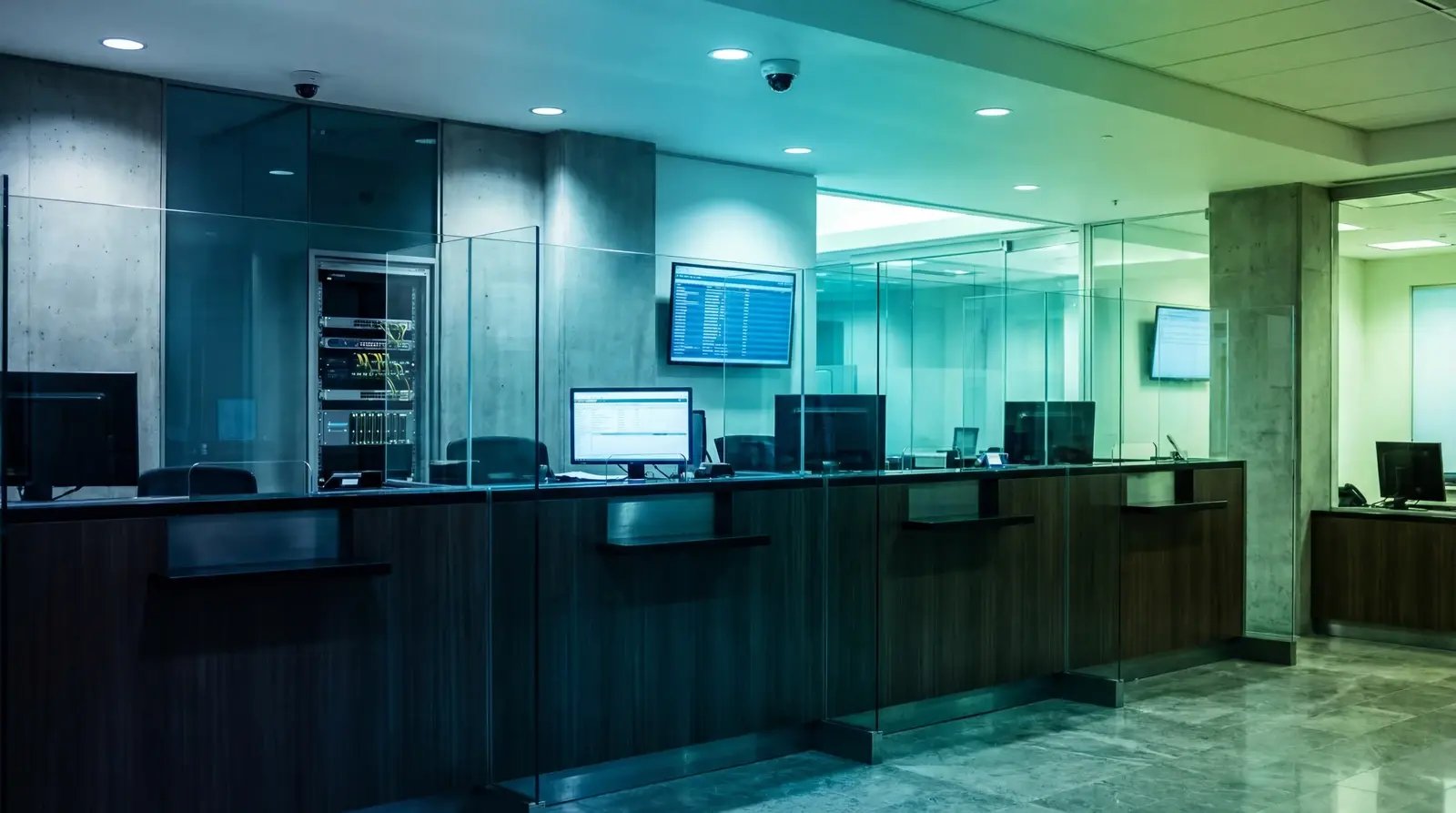

Walk into a typical branch and count the connected devices: teller workstations, ATMs, security cameras, digital signage, HVAC controllers, visitor Wi-Fi access points, printers, VoIP phones, and often a direct connection back to core banking infrastructure. According to the Verizon 2024 Data Breach Investigations Report, 98% of attacks involve some form of credential abuse. On a flat branch network, a single stolen credential can give an attacker access to every device and system on that segment.

Here's the thing: this isn't a theoretical risk. The MITRE ATT&CK framework documents dozens of lateral movement techniques that exploit exactly this kind of implicit trust between network segments. Attackers don't need sophisticated zero-day exploits when they can simply move freely across a network that treats every connected device as trusted. Based on incident data from IBM X-Force and CrowdStrike, lateral movement is a factor in the majority of successful breaches, with some analyses placing the figure above 70%.

The challenge is scale. A regional bank might have 200 to 500 branches. A national institution could have thousands. Each one is a potential entry point, and most lack any meaningful internal segmentation between device types, user roles, or trust levels.

Why VLAN-Based PCI DSS Network Segmentation Fails at Branch Scale

VLAN-based segmentation breaks down in distributed bank branch environments because it requires manual configuration across hundreds of locations with heterogeneous device populations and no local IT staff. According to a 2025 Omdia survey of 352 cybersecurity decision-makers, 53% of organizations still rely on VLANs as their primary segmentation approach. (The Omdia survey focused on healthcare and manufacturing verticals, but the findings around VLAN prevalence and microsegmentation adoption are consistent with what I'm seeing in financial services branch environments.) For a single data center, VLANs can work. For a distributed branch network, they become an operational nightmare.

The problems compound at branch scale:

• Static by design: VLANs assign devices to segments based on switch port or IP subnet. When a device moves, gets replaced, or a new device type is introduced across 300 branches, every switch needs manual reconfiguration.
• No device intelligence: A VLAN doesn't know whether the device connected to port 12 is a teller workstation, a security camera, or an attacker's laptop. It enforces the same policy regardless of what's actually on the network.
• Coarse granularity: Most branches have three to five VLANs at best (corporate, guest, IoT, maybe voice). That means a compromised security camera shares a segment with the DVR, HVAC system, and badge readers. Lateral movement within a VLAN is completely unrestricted.
• No local IT: Branch locations rarely have dedicated network staff. VLAN changes require remote configuration or dispatching a technician, which means segmentation policies fall behind as branch environments evolve.
• Audit complexity: Proving VLAN-based segmentation meets PCI DSS 4.0 Requirement 1.2.6 across hundreds of branches requires documenting the configuration of every switch at every location. Most organizations can't demonstrate this consistently.

The result is a false sense of security. The network diagram shows VLANs. The reality on the ground is something much less controlled.

Credential Abuse and Flat Networks: The 98% Problem

Credential abuse is the primary attack vector in financial services breaches, and flat branch networks offer zero resistance once credentials are compromised. According to the Verizon DBIR, 98% of attacks involve stolen or misused credentials. Combined with the CrowdStrike finding of 31-minute average lateral movement time in financial services, the math is straightforward: stolen credentials plus a flat network equals unrestricted access to critical systems.

In my experience, this is where the ransomware playbook and the data exfiltration playbook converge. An attacker compromises a single branch endpoint (phishing a teller, exploiting an unpatched IoT device, or gaining physical access to an open network port). From there, they use legitimate credentials to move laterally across the flat network, pivoting from the branch to centralized systems. The IBM X-Force Threat Intelligence Index consistently highlights credential-based initial access as the top vector in financial services.

The MITRE ATT&CK lateral movement techniques (T1021, T1550, T1563) map precisely to what we see in branch compromises.

The fundamental issue is that most branch networks operate on implicit trust. If a device is on the network, it can communicate with other devices on the same segment. There's no verification of identity, no behavioral baseline, no policy that says "a security camera should never initiate a connection to the teller application server." This implicit trust model is the architectural flaw that makes lateral movement so effective.

Compliance Is Catching Up: PCI DSS 4.0, FFIEC, and DORA

Regulatory frameworks are tightening their requirements around network segmentation in financial services, making the branch network problem impossible to ignore.

Regulators have noticed. The reality is that network segmentation in financial services has lagged behind other regulated industries, and the compliance frameworks are now catching up.

According to the Omdia 2025 survey, 60% of cybersecurity decision-makers cite regulatory compliance as the primary driver for microsegmentation adoption.

PCI DSS 4.0 Requirement 1.2.6 explicitly mandates that organizations document and justify all allowed network connections, with segmentation controls validated at least every six months (and after any significant change). For a bank with hundreds of branches, this means proving that cardholder data environments are properly isolated at every single location, not just at the data center.

That's a steep bar. The PCI Security Standards Council has made it clear that "we have VLANs" isn't a sufficient answer anymore.

The FFIEC Information Security Handbook provides network segmentation guidance that emphasizes limiting lateral movement and isolating sensitive systems. FFIEC examiners are increasingly asking pointed questions about how institutions segment IoT devices, limit east-west traffic, and enforce least-privilege access at the network layer.

These aren't casual inquiries.

Beyond U.S. requirements, the EU Digital Operational Resilience Act (DORA) and SWIFT Customer Security Programme (CSP) both require demonstrable network segmentation controls. For institutions operating across jurisdictions, the compliance burden is multiplicative.

The common thread across all these frameworks: static, perimeter-focused segmentation isn't sufficient anymore. The bar has moved. Regulators want to see granular, enforceable, and auditable segmentation that extends to every branch, every device type, and every connection.

Identity-Based Microsegmentation: A Different Architecture for Branch Networks

Microsegmentation in the banking context means enforcing granular security policies between individual devices and workloads based on their verified identity, not their network location.

Instead of grouping devices by VLAN or IP range, identity-based microsegmentation classifies every connected asset (teller workstation, security camera, ATM, HVAC controller) and enforces policies based on what each device is, who is using it, and what it should be allowed to communicate with.

According to the Omdia 2025 survey, 69% of cybersecurity decision-makers want identity-based microsegmentation capabilities. The appeal is straightforward: identity travels with the device regardless of which branch, switch port, or VLAN it connects to.

Here's how this architecture differs from traditional approaches in a branch context:

Discovery and Classification

Before you can segment, you need to know what's on the network. An effective microsegmentation approach starts with continuous discovery and classification of every device across every branch. This means building a real-time inventory that identifies device type, manufacturer, operating system, behavior patterns, and associated users. In my experience, 50 to 70% of devices in a typical branch can't support an endpoint agent (cameras, sensors, badge readers, HVAC systems), so classification must be agentless, relying on network telemetry and protocol analysis.

Policy Based on Identity, Not Location

Identity-based segmentation defines communication policies using the identity of source and destination rather than IP addresses or VLAN membership. A policy might state: "Teller workstations authenticated by a branch employee can reach the teller application server on port 443 and the print server on port 9100, and nothing else." That policy applies identically whether the workstation is in the Chicago flagship branch or a rural location in Iowa. No per-branch configuration. No switch-level ACL management.

Enforcement at the Existing Network Edge

The practical breakthrough for distributed environments is enforcement that works with existing network infrastructure. Rather than requiring new hardware, overlay networks, or agents on every endpoint, identity-based policies can be enforced at the access layer switches and wireless access points already deployed in branches. This is critical for financial institutions that aren't going to rip and replace networking equipment across hundreds of locations.

The NIST Cybersecurity Framework 2.0 explicitly calls out identity-driven access controls and microsegmentation as core components of a mature security posture. The architecture described here aligns directly with NIST CSF's Protect and Detect functions.

The Cross-Vertical Pattern: What Financial Services Can Learn from Healthcare and Manufacturing

I've seen this exact pattern play out in healthcare and manufacturing over the past several years. Hospital satellite clinics, manufacturing plant floors, and bank branches share the same architectural vulnerabilities: distributed physical locations with flat or minimally segmented networks, a mix of managed IT endpoints and unmanaged IoT/OT devices, no local security staff, and implicit trust between everything on the same network segment.

Last year, I worked with a health system where attackers compromised an unpatched IoT sensor in a satellite clinic and pivoted to the electronic health records system across a flat network segment. The entire attack took less than an hour. The branch bank scenario is architecturally identical.

Healthcare had its wake-up moment with ransomware attacks that jumped from compromised IoT devices to electronic health record systems. Manufacturing learned the same lesson when attackers pivoted from IT networks into operational technology environments, shutting down production lines. In both cases, the root cause was identical: flat networks with no segmentation between device types and trust levels.

Financial services hasn't had its equivalent wake-up moment yet, but the conditions are identical. The same unmanaged devices, the same flat networks, the same implicit trust. The only difference is the target: instead of patient records or production systems, it's cardholder data, SWIFT connections, and core banking infrastructure.

The institutions that learn from adjacent verticals rather than waiting for their own incident will be significantly better positioned. The architectural solution is the same across all three: identity-based microsegmentation that works with existing infrastructure, classifies every device regardless of type, and enforces granular policies without requiring agents or local IT staff.

Deployment Reality: A Phased Approach for Distributed Branches

Let me be direct about something: deploying microsegmentation across hundreds of bank branches isn't a weekend project. Anyone who tells you otherwise is selling you something. But it doesn't have to be a multi-year, boil-the-ocean initiative either. The key is a phased approach that delivers security value at each stage.

Phase 1: Discover and Baseline (Weeks 1 to 4)

Start with passive discovery across a representative set of branches. Deploy network sensors or enable telemetry on existing switches to build a complete device inventory. You'll almost certainly find devices you didn't know existed. In every deployment I've been involved with, the actual device count exceeds the IT team's estimate by 30 to 50%. This phase is zero-risk (passive only) and immediately valuable for compliance documentation and audit preparation.

Phase 2: Classify and Simulate (Weeks 4 to 8)

With a device inventory in place, assign identity classifications and build initial microsegmentation policies. Run these policies in simulation mode (sometimes called "monitor" or "learning" mode) where the system logs what would be blocked without actually enforcing anything. This step is critical. It surfaces legitimate communication flows you might not have anticipated and prevents the number one deployment risk: breaking production applications.

Phase 3: Enforce in Waves (Weeks 8 to 16)

Begin enforcement at a small set of pilot branches, starting with the highest-risk device categories (IoT devices, guest networks) before moving to more sensitive segments (teller workstations, ATM connections). Roll out in waves, expanding to additional branches as confidence grows. Each wave becomes faster than the last because the policies are identity-based: a policy written for "security cameras" applies to every security camera across every branch, not just the ones at a specific location.

Phase 4: Continuous Refinement

Microsegmentation isn't a "set and forget" deployment. Device populations change, new applications are introduced, and branch configurations evolve. Continuous monitoring, policy refinement, and regular compliance validation (aligned with PCI DSS 4.0's six-month validation requirement) are part of the operational model. The good news is that identity-based policies dramatically reduce the operational burden compared to managing per-branch VLAN configurations.

Only 9% of organizations report having microsegmented more than 80% of their critical systems, according to the Omdia 2025 survey. That number reflects the difficulty of traditional approaches, not the inherent complexity of the problem. Identity-based approaches that work with existing infrastructure are changing that equation significantly.

Frequently Asked Questions About PCI DSS Network Segmentation

What is lateral movement in banking cybersecurity?

Lateral movement is the technique attackers use to move through a network after gaining initial access, progressing from a compromised device to higher-value targets like cardholder data environments or core banking systems.

According to the CrowdStrike 2025 Global Threat Report, the average lateral movement time in financial services is 31 minutes, meaning attackers can reach critical systems in under half an hour on a poorly segmented network. Effective network segmentation controls and microsegmentation are the primary defenses against lateral movement in bank branch environments.

How does segmentation for PCI compliance help banks meet FFIEC requirements?

Network segmentation reduces PCI DSS audit scope by isolating cardholder data environments from the rest of the network, meaning fewer systems need to meet the full set of PCI DSS controls.

PCI DSS 4.0 Requirement 1.2.6 requires organizations to document and validate segmentation controls every six months. The FFIEC Information Security Handbook further requires limiting east-west traffic and isolating sensitive systems. Identity-based microsegmentation simplifies compliance across distributed branches by applying consistent, auditable policies based on device identity rather than per-location VLAN configurations.

Why are bank branches vulnerable to lateral movement attacks?

Bank branches are vulnerable because they typically operate flat or minimally segmented networks connecting a diverse mix of managed IT endpoints and unmanaged IoT devices (ATMs, cameras, digital signage, HVAC systems). Most branches don't have local IT staff to maintain segmentation, and 50 to 70% of branch devices can't support endpoint security agents. Combined with the Verizon DBIR finding that 98% of attacks involve credential abuse, a single compromised device on a flat branch network can provide unrestricted access to critical systems.

What is the difference between microsegmentation and VLAN segmentation for banks?

VLAN segmentation groups devices by network location (switch port or IP subnet) and provides coarse isolation between segments, typically three to five VLANs per branch. Microsegmentation enforces granular, identity-based policies between individual devices regardless of their network location. The key difference: VLANs require manual per-location configuration and offer no protection within a segment, while microsegmentation applies consistent identity-based policies across all branches simultaneously and restricts device-to-device communication even within the same network segment.

The bank branch network problem isn't new, but the urgency is. PCI DSS 4.0 compliance deadlines, increasing FFIEC scrutiny, and the reality of 31-minute lateral movement times are compressing the timeline for financial institutions to address their branch segmentation gaps. The institutions that treat branch network segmentation as a board-level priority (rather than a network team backlog item) will be the ones that avoid becoming the next case study in why flat networks and financial services don't mix.

The path forward doesn't require ripping out existing infrastructure or deploying agents to every device. It requires a fundamental shift from network-centric segmentation to identity-based microsegmentation, applied consistently from headquarters to the smallest branch. The technology and the frameworks exist today. The question is whether your organization will adopt them proactively or reactively. I expect the next PCI DSS audit cycle to be the first where branch-level microsegmentation isn't just a differentiator, but a baseline expectation.
